MyBatis(三)插件开发

发表于 更新于

MyBatis允许我们在其执行过程中对特定的一些方法进行拦截代理，实现一些特定的通用功能，如分页插件或者租户插件，允许进行拦截的类及对应方法基本如下

  • Executor (update, query, flushStatements, commit, rollback, getTransaction, close, isClosed)
  • ParameterHandler (getParameterObject, setParameters)
  • ResultSetHandler (handleResultSets, handleOutputParameters)
  • StatementHandler (prepare, parameterize, batch, update, query)

这部分可以在源码中找到

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
// Configuration.java
public ParameterHandler newParameterHandler(MappedStatement mappedStatement, Object parameterObject, BoundSql boundSql) {
    ParameterHandler parameterHandler = mappedStatement.getLang().createParameterHandler(mappedStatement, parameterObject, boundSql);
    // 对类进行代理拦截
    parameterHandler = (ParameterHandler) interceptorChain.pluginAll(parameterHandler);
    return parameterHandler;
}

public ResultSetHandler newResultSetHandler(Executor executor, MappedStatement mappedStatement, RowBounds rowBounds, ParameterHandler parameterHandler,
                                            ResultHandler resultHandler, BoundSql boundSql) {
    ResultSetHandler resultSetHandler = new DefaultResultSetHandler(executor, mappedStatement, parameterHandler, resultHandler, boundSql, rowBounds);
    // 对类进行代理拦截
    resultSetHandler = (ResultSetHandler) interceptorChain.pluginAll(resultSetHandler);
    return resultSetHandler;
}

public StatementHandler newStatementHandler(Executor executor, MappedStatement mappedStatement, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {
    StatementHandler statementHandler = new RoutingStatementHandler(executor, mappedStatement, parameterObject, rowBounds, resultHandler, boundSql);
    // 对类进行代理拦截
    statementHandler = (StatementHandler) interceptorChain.pluginAll(statementHandler);
    return statementHandler;
}

public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
    executorType = executorType == null ? defaultExecutorType : executorType;
    Executor executor;
    if (ExecutorType.BATCH == executorType) {
        executor = new BatchExecutor(this, transaction);
    } else if (ExecutorType.REUSE == executorType) {
        executor = new ReuseExecutor(this, transaction);
    } else {
        executor = new SimpleExecutor(this, transaction);
    }
    if (cacheEnabled) {
        executor = new CachingExecutor(executor);
    }
    // 对类进行代理拦截
    executor = (Executor) interceptorChain.pluginAll(executor);
    return executor;
}

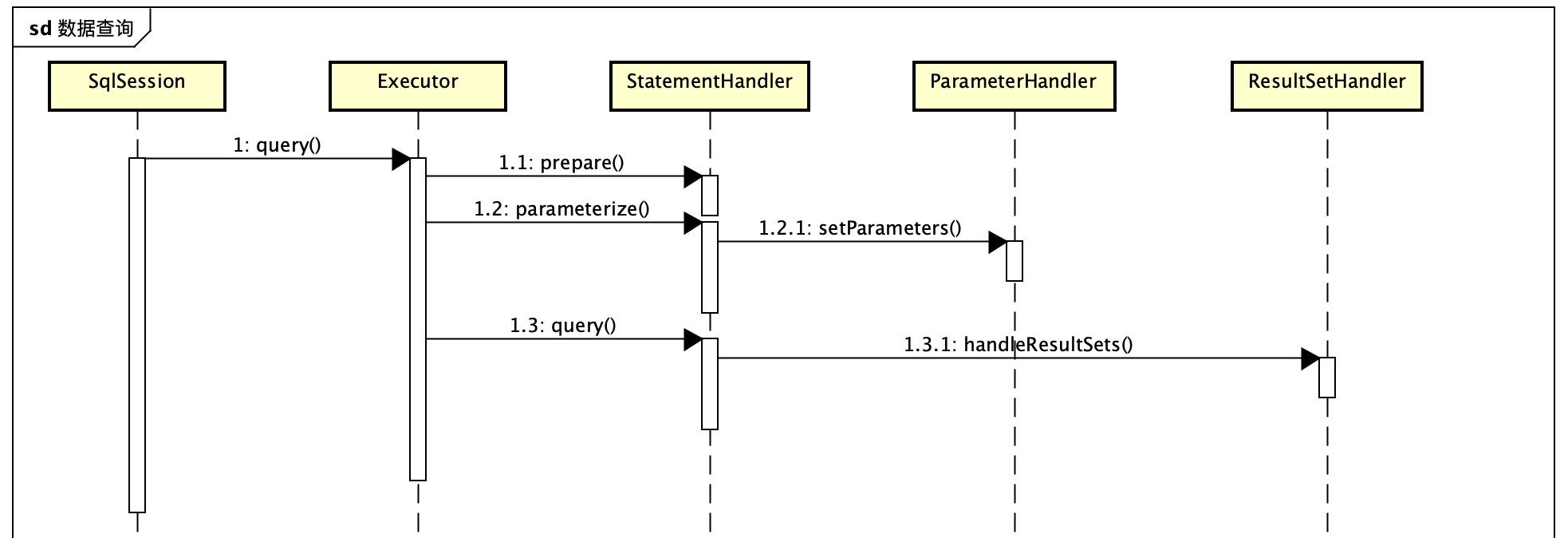

要想更好的使用MyBatis的插件功能，首先需要对拦截到的类和方法进行了解，以一次查询为例我们看一下相关流程

Executor: Executor是SqlSession中执行功能使用到的类，如查询时，首先从Configuration或获取MappedStatement（可以认为是对应的mapper.xml中的 SELECT节点信息），之后和具体的参数值一起传递给Executor的query方法使用

1
2
// Executor.java
<E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException;

StatementHandler: Executor具体执行时，默认会使用StatementHandler的prepare对要执行的SQL创建预编译的Statement，之后使用parameterize设置参数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
// SimpleExecutor.java
public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
    Statement stmt = null;
    try {
        Configuration configuration = ms.getConfiguration();
        StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
        stmt = prepareStatement(handler, ms.getStatementLog());
        return handler.query(stmt, resultHandler);
    } finally {
        closeStatement(stmt);
    }
}

private Statement prepareStatement(StatementHandler handler, Log statementLog) throws SQLException {
    Statement stmt;
    Connection connection = getConnection(statementLog);
    // 预编译
    stmt = handler.prepare(connection, transaction.getTimeout());
    // 设置参数
    handler.parameterize(stmt);
    return stmt;
}

在StatementHandler执行parameterize，默认会使用ParameterHandler#setParameters来对预编译结果继续进行参数设置

之后再调用StatementHandler#query方法来进行查询，最后使用ResultSetHandler#handleResultSets对查询结果进行处理

分析了流程之后，我们就可以根据自己的需求在指定方法上面进行拦截处理，如我们想要统一在数据库层面设置某一个字段值(如创建人信息)，那么就可以拦截Executor#update方法，对其中的参数进行修改赋值

下面我们通过例子来具体使用感受一下

数据准备

首先创建一个表（这里是MySQL自带的表）

1
2
3
4
5
6
7
8
9
CREATE TABLE `employees` (
  `emp_no` int NOT NULL,
  `birth_date` date NOT NULL,
  `first_name` varchar(14) NOT NULL,
  `last_name` varchar(16) NOT NULL,
  `gender` enum('M','F') NOT NULL,
  `hire_date` date NOT NULL,
  PRIMARY KEY (`emp_no`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;

插入一些数据（MySQL自带的数据）

1
2
3
4
5
6
7
8
9
10
11
INSERT INTO `employees` (`emp_no`,`birth_date`,`first_name`,`last_name`,`gender`,`hire_date`) VALUES (10001,'1953-09-02','Georgi','Facello','M','1986-06-26');
INSERT INTO `employees` (`emp_no`,`birth_date`,`first_name`,`last_name`,`gender`,`hire_date`) VALUES (10002,'1964-06-02','Bezalel','Simmel','F','1985-11-21');
INSERT INTO `employees` (`emp_no`,`birth_date`,`first_name`,`last_name`,`gender`,`hire_date`) VALUES (10003,'1959-12-03','Parto','Bamford','M','1986-08-28');
INSERT INTO `employees` (`emp_no`,`birth_date`,`first_name`,`last_name`,`gender`,`hire_date`) VALUES (10004,'1954-05-01','Chirstian','Koblick','M','1986-12-01');
INSERT INTO `employees` (`emp_no`,`birth_date`,`first_name`,`last_name`,`gender`,`hire_date`) VALUES (10005,'1955-01-21','Kyoichi','Maliniak','M','1989-09-12');
INSERT INTO `employees` (`emp_no`,`birth_date`,`first_name`,`last_name`,`gender`,`hire_date`) VALUES (10006,'1953-04-20','Anneke','Preusig','F','1989-06-02');
INSERT INTO `employees` (`emp_no`,`birth_date`,`first_name`,`last_name`,`gender`,`hire_date`) VALUES (10007,'1957-05-23','Tzvetan','Zielinski','F','1989-02-10');
INSERT INTO `employees` (`emp_no`,`birth_date`,`first_name`,`last_name`,`gender`,`hire_date`) VALUES (10008,'1958-02-19','Saniya','Kalloufi','M','1994-09-15');
INSERT INTO `employees` (`emp_no`,`birth_date`,`first_name`,`last_name`,`gender`,`hire_date`) VALUES (10009,'1952-04-19','Sumant','Peac','F','1985-02-18');
INSERT INTO `employees` (`emp_no`,`birth_date`,`first_name`,`last_name`,`gender`,`hire_date`) VALUES (10010,'1963-06-01','Duangkaew','Piveteau','F','1989-08-24');
INSERT INTO `employees` (`emp_no`,`birth_date`,`first_name`,`last_name`,`gender`,`hire_date`) VALUES (10011,'1972-02-29','Jiang','David','M','1990-02-20');

之后可以使用mybatis-generator生成表对应的类及相应的mapper文件

分页插件

这里我们以一个最简单的分页插件功能为例，看一下如何实现使用一个插件

因为分页查询就是涉及查询，所以一般可以拦截Executor的query方法，因为有两个query方法，这里就统一都拦截了

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
// 需要添加拦截器注解
@Intercepts({
        // 这里需要声明拦截的类，方法名称、参数信息
        @Signature(type = Executor.class, method = "query", args = {MappedStatement.class, Object.class, RowBounds.class, ResultHandler.class}),
        @Signature(type = Executor.class, method = "query", args = {MappedStatement.class, Object.class, RowBounds.class, ResultHandler.class, CacheKey.class, BoundSql.class})
})
public class PageInterceptor implements Interceptor {
    private static ThreadLocal<Page> pageThreadLocal = new ThreadLocal<>();

    public static void page(Integer page, Integer size) {
        final Page p = new Page();
        p.setPage(page);
        p.setSize(size);
        pageThreadLocal.set(p);
    }

    @Override
    public Object intercept(Invocation invocation) throws Throwable {
        final Page page = pageThreadLocal.get();
        if (page == null) {
            return invocation.proceed();
        }

        try {
            // 1. 通过 invocation 获取拦截到的方法相关信息
            final Executor executor = (Executor) invocation.getTarget();
            final Object[] args = invocation.getArgs();

            // 2. 获取全部的参数(6个)
            MappedStatement mappedStatement = (MappedStatement) args[0];
            Object param = args[1];
            RowBounds rowBounds = (RowBounds) args[2];
            ResultHandler resultHandler = (ResultHandler) args[3];
            CacheKey cacheKey = null;
            BoundSql boundSql = null;
            // 拦截的是有boundSql参数的方法
            if (args.length == 6) {
                cacheKey = (CacheKey) args[4];
                boundSql = (BoundSql) args[5];
                // 修改boundSql中的 sql 语句
                changePageBoundSql(page, boundSql);
            }
            // 拦截的是无boundSql参数的方法
            if (args.length == 4) {
                boundSql = mappedStatement.getBoundSql(param);

                // 修改boundSql中的 sql 语句(先修改sql后再创建cacheKey)
                changePageBoundSql(page, boundSql);
                cacheKey = executor.createCacheKey(mappedStatement, param, rowBounds, boundSql);
            }

            // 3. 调用原方法执行
            return executor.query(mappedStatement, page, rowBounds, resultHandler, cacheKey, boundSql);

        } finally {
            pageThreadLocal.remove();
        }

    }

    private void changePageBoundSql(Page page, BoundSql boundSql) {
        final int offset = (page.getPage() - 1) * page.getSize();

        // 修改SQL，添加分页参数
        final String sql = boundSql.getSql();
        String newSql = sql + " limit " + page.getSize() + " offset " + offset;
        // 重新设置 BoundSql 实例中的 sql 属性值
        final MetaObject metaObject = SystemMetaObject.forObject(boundSql);
        metaObject.setValue("sql", newSql);
    }


    static class Page {
        private Integer page;
        private Integer size;

        public Integer getPage() {
            return page;
        }

        public void setPage(Integer page) {
            this.page = page;
        }

        public Integer getSize() {
            return size;
        }

        public void setSize(Integer size) {
            this.size = size;
        }
    }
}

之后在mybatis的配置文件中配置上此插件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <plugins>
        <plugin interceptor="com.github.zavier.mybatis.plugin.PageInterceptor" />
    </plugins>

    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC" />
            <dataSource type="POOLED">
                <property name="driver" value="com.mysql.cj.jdbc.Driver"/>
                <property name="url" value="jdbc:mysql://localhost:3306/test"/>
                <property name="username" value="root"/>
                <property name="password" value="mysqlroot"/>
            </dataSource>
        </environment>
    </environments>

    <!-- 指定mapper配置文件 -->
    <mappers>
        <mapper resource="mapper/EmployeesMapper.xml" />
    </mappers>

</configuration>

这时候就可以使用了

1
2
3
4
5
6
7
@Test
public void test() {
    PageInterceptor.page(1, 2);
    final EmployeesExample example = new EmployeesExample();
    final List<Employees> employees = employeesMapper.selectByExample(example);
    Assert.assertEquals(2, employees.size());
}

这时候可以看到执行的SQL日志

1
2
3
==>  Preparing: select emp_no, birth_date, first_name, last_name, gender, hire_date from employees limit 2 offset 0
==> Parameters:
<==      Total: 2

对应源代码：https://github.com/zavier/mybatis-plugin-example

这里只是一个示例，分页可以使用PageHelper，或者使用如果使用MyBatis-Plus的话，它也提供了很多的插件可以使用（分页插件、乐观锁插件、多租户插件等），这里我们主要就是了解一下原理，在有需要的时候可以开发自定义的插件
